>> Planetary Mixers

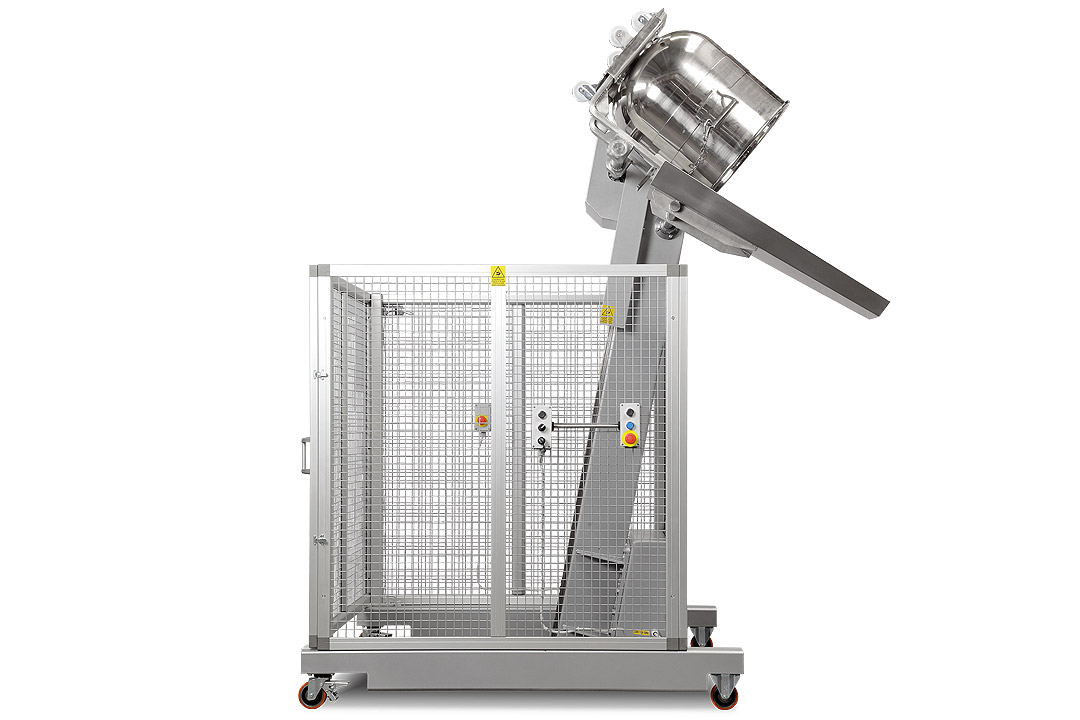

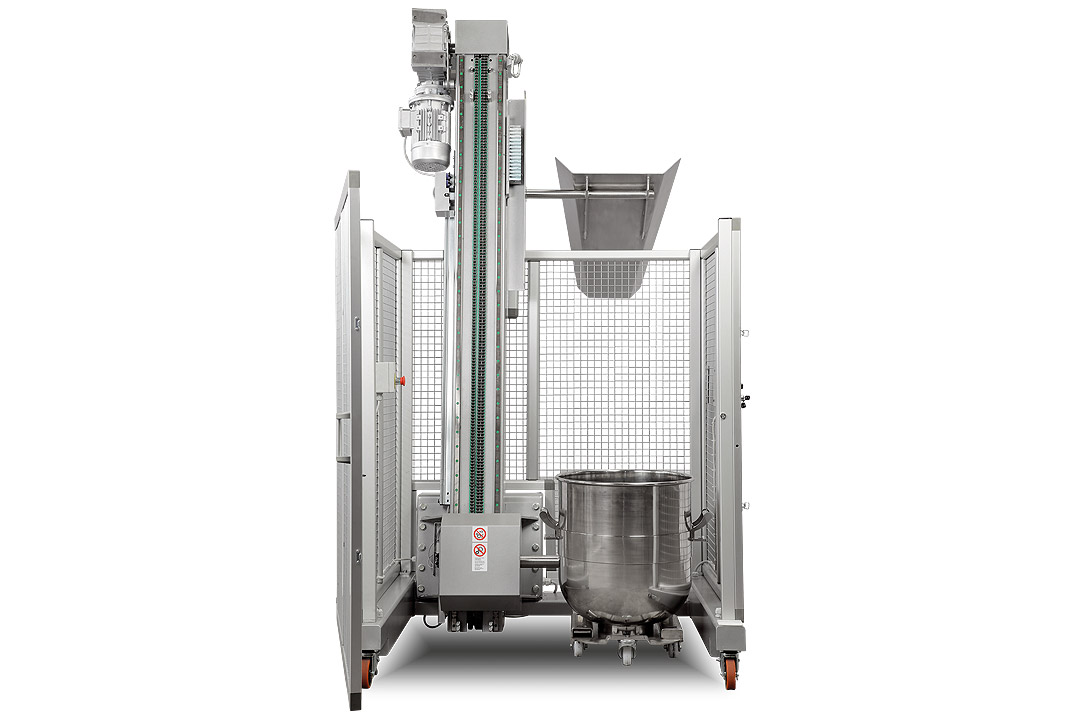

Bowls Elevator 80/140 liters

  • Features
    • Rugged structure made of steel painted (or in stainless steel on request)
    • Transmission system by double chain and motor reducer
    • Four wheels with locked device help moving operation
    • Safety cage manufactured following EC regulations

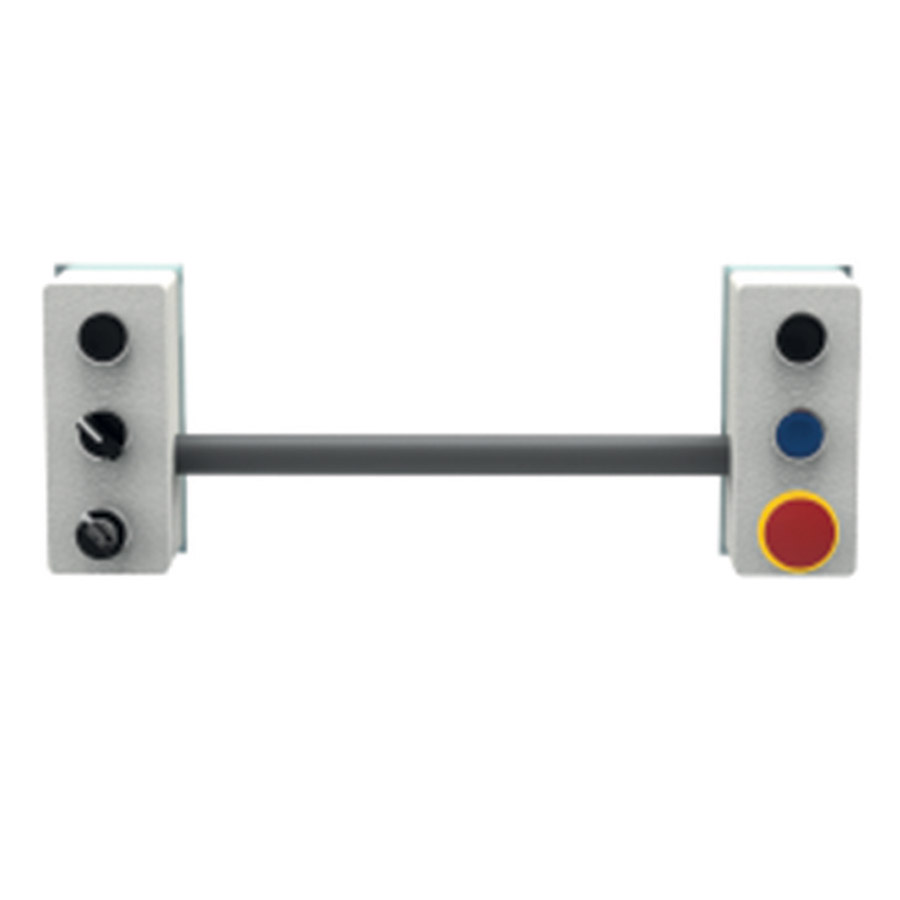

    • Manual functioning with presence of operator
    • Hopper for helping the product to go into another feeding hopper
    • Two speed by inverter: high speed for lifting/lowering the bowl and low speed for tilting the bowl

Data sheet

Download data sheet:
Starmix - Bowls Elevator 80/140 liters


Bowls
liters
80 - 100 - 120 - 140

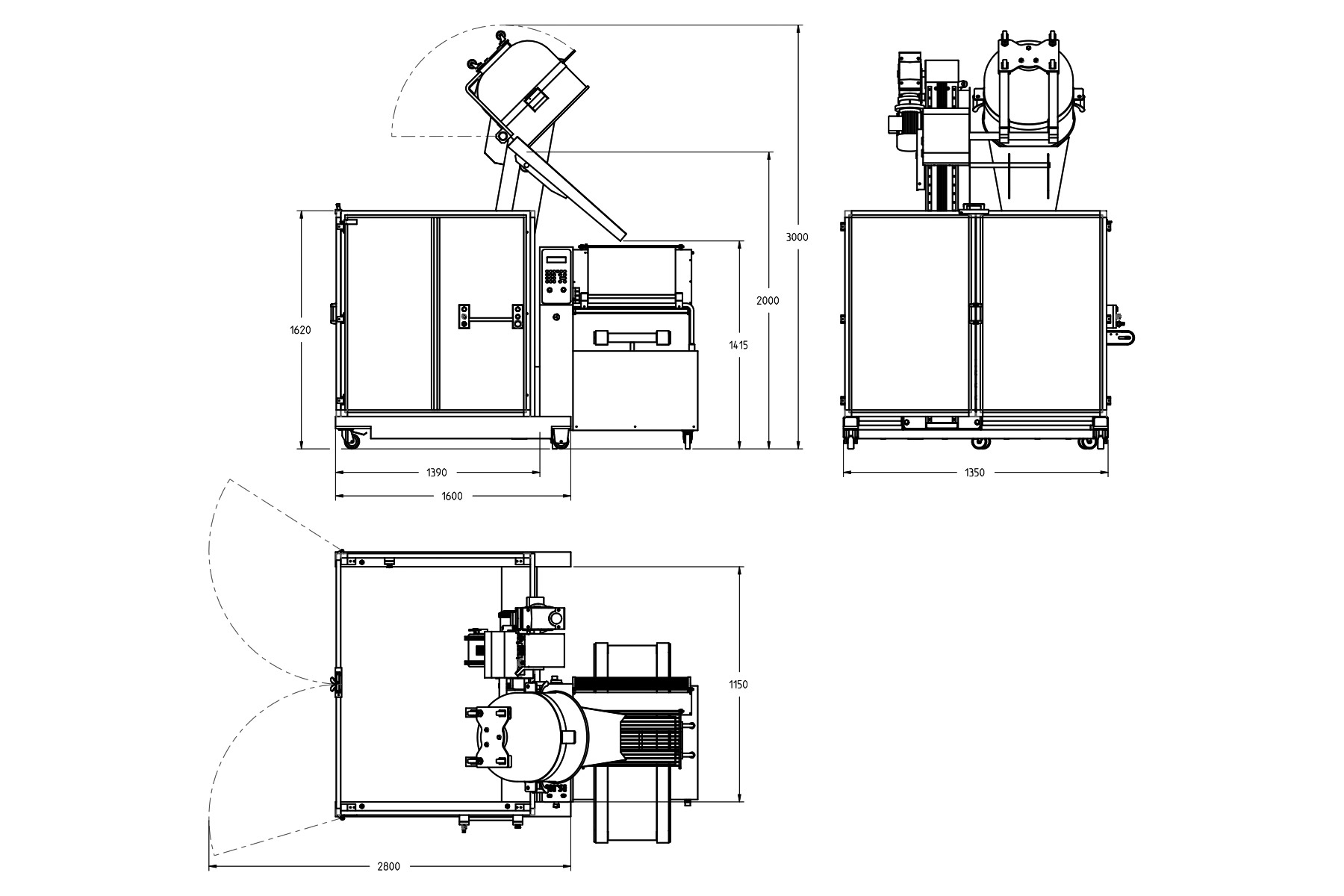

Standard discharged height
(Different discharge height is possible on request)
mm 1415
Motor power
kW 1.5
Standard voltage
Volt
Phase
HZ
230
1
50-60
Net weight
Kg 550
Maximum load
Kg 200
